11 August 2022

Researchers and entrepreneurs have developed an implant made of collagen protein from pig’s skin, which resembles the human cornea. In a pilot study, the implant restored vision to 20 people with diseased corneas, most of whom were blind prior to receiving the implant.

Demonstration of surgical method.
The researchers have developed a new, minimally invasive method. A small incision is made, through which the implant is inserted into the existing cornea. The incision can be made with an advanced laser (as in the photo), but also, when needed, by hand with simple surgical instruments. Thor Balkhed

The study jointly led by researchers at Linköping University (LiU) and LinkoCare Life Sciences AB has been published in Nature Biotechnology. The promising results bring hope to those suffering from corneal blindness and low vision by providing a bioengineered implant as an alternative to the transplantation of donated human corneas, which are scarce in countries where the need for them is greatest.

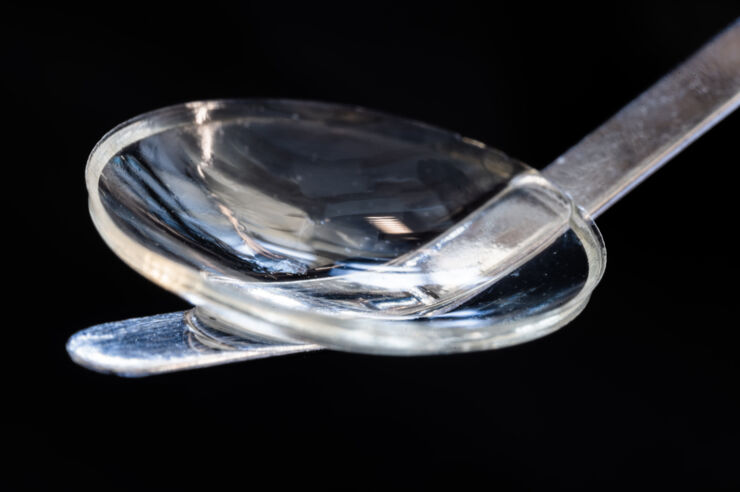

“The results show that it is possible to develop a biomaterial that meets all the criteria for being used as human implants, which can be mass-produced and stored up to two years and thereby reach even more people with vision problems. Transparent, disc-shaped implant.The implant resembles the human cornea and is made of collagen protein from pig’s skin Photo credit Thor Balkhed This gets us around the problem of shortage of donated corneal tissue and access to other treatments for eye diseases”, says Neil Lagali, professor at the Department of Biomedical and Clinical Sciences at LiU, one of the researchers behind the study.

Affordable

An estimated 12.7 million people around the world are blind due to their corneas, which is the outermost transparent layer of the eye, being damaged or diseased. Their only way of regaining vision is to receive a transplanted cornea from a human donor. But just one in 70 patients receives a cornea transplant. Furthermore, most of those who need cornea transplants live in low and middle-income countries in which access to treatments is very limited.

“Safety and effectiveness of the bioengineered implants have been the core of our work, says Mehrdad Rafat, the researcher and entrepreneur behind the design and development of the implants. Neil Lagai and Mehrdad Rafat.Neil Lagali, professor at Linköping University, and Mehrdad Rafat, adjunct senior lecturer at Linköping University and founder of the company LinkoCare Life Sciences AB. Photo credit Thor Balkhed He is an adjunct associate professor (senior lecturer) at LiU’s Department of Biomedical Engineering and founder and CEO of the company LinkoCare Life Sciences AB, which manufactures the bioengineered corneas used in the study.

“We’ve made significant efforts to ensure that our invention will be widely available and affordable by all and not just by the wealthy. That’s why this technology can be used in all parts of the world”, he says.

The cornea consists mainly of the protein collagen. To create an alternative to human cornea, the researchers used collagen molecules derived from pig skin that were highly purified and produced under strict conditions for human use. The pig skin used is a by-product of the food industry, making it easy to access and economically advantageous. In the process of constructing the implant, the researchers stabilized the loose collagen molecules forming a robust and transparent material that could withstand handling and implantation in the eye. While donated corneas must be used within two weeks, the bioengineered corneas can be stored for up to two years before use.

New surgical method

The researchers have also developed a new, minimally invasive method for treating the disease keratoconus, in which the cornea becomes so thin that it can lead to blindness. Today, a keratoconus patient’s cornea at advanced stage is surgically removed and replaced by a donated cornea, which is sewn into place using surgical sutures. Picture of person having their eye examined in a machine.Femtosecond laser interface used for cutting and reshaping the cornea. Photo credit Thor Balkhed This kind of surgery is invasive and only done at larger university hospitals.

“A less invasive method could be used in more hospitals, thereby helping more people. With our method, the surgeon doesn’t need to remove the patient’s own tissue. Instead, a small incision is made, through which the implant is inserted into the existing cornea”, says Neil Lagali, who has led the research group that has developed this surgical method.

No stitches are needed with this new surgical method. The incision in the cornea can be made with high precision thanks to an advanced laser, but also, when needed, by hand with simple surgical instruments. The method was first tested on pigs and turned out to be simpler and potentially safer than a conventional cornea transplant.

The surgical method and the implants were used by surgeons in Iran and India, two countries where many people suffer from corneal blindness and low vision, but where there is a significant lack of donated corneas and treatment options. Twenty people who were either blind or on the verge of losing sight due to advanced keratoconus participated in the pilot clinical study and received the biomaterial implant. The operations were free from complications; the tissue healed fast; and an eight-week treatment with immunosuppressive eye drops was enough to prevent rejection of the implant. With conventional cornea transplants, medicine must be taken for several years. Close up of eye and femtolaser.A bioengineered implant could be an alternative to the transplantation of donated human corneas. Photo credit Thor Balkhed The patients were followed for two years, and no complications were noted during that time.

Perfect vision

The primary purpose of the pilot clinical study was to investigate whether the implant was safe to use. However, the researchers were surprised by what happened with the implant. The cornea’s thickness and curvature were restored to normal. At the group level, the participants’ sight improved as much as it would have after a cornea transplant with donated tissue. Before the operation, 14 of the 20 participants were blind. After two years, none of them was blind any more. Three of the Indian participants who had been blind prior to the study had perfect (20/20) vision after the operation.

A larger clinical study followed by market approval by regulatory authorities is needed before the implant can be used in healthcare. The researchers also want to study whether the technology can be used to treat more eye diseases, and whether the implant can be adapted to the individual for even greater efficacy.

LinkoCare Life Sciences AB, which is responsible for the production, certification, packaging, and sterilisation of the implants used in the study, with the support of Care Group India, covered the cost of implant manufacturing, ISO-compliant preclinical testing, and clinical testing.

Further funding for the study for biomaterials and surgical development and testing came from the European Union Horizon 2020 Programme, and ALF funds from Linköping University and the Östergötland Region. These funders did not participate in the design or execution of the research. Mehrdad Rafat is the patent holder, via LinkoCare AB, and sits on the company’s board. Another of the study's co-authors (Shideh Tabe) also sits on the company’s board.

The article: Bioengineered corneal tissue for minimally invasive vision restoration in advanced keratoconus in two clinical cohorts, Mehrdad Rafat, Mahmoud Jabbarvand, Namrata Sharma, Maria Xeroudaki, Shideh Tabe, Raha Omrani, Muthukumar Thangavelu, Anthony Mukwaya, Per Fagerholm, Anton Lennikov, Farshad Askarizadeh and Neil Lagali, Nature Biotechnology, published online August 11 2022. DOI: 10.1038/s41587-022-01408-w
